TECHNICS SL1200GR

Retour à la liste

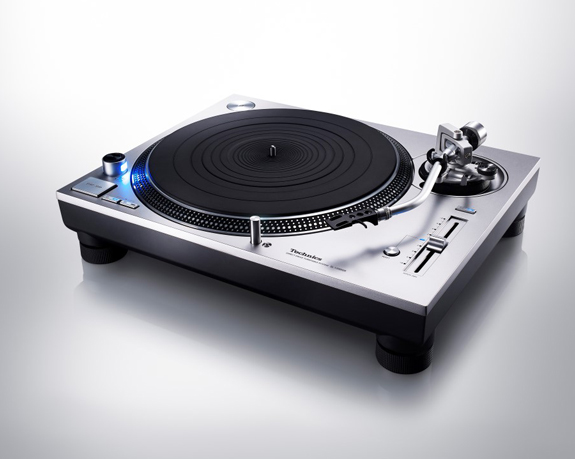

  • TECHNICS - SL1200GR - photo n 1 TECHNICS SL1200GR top side
    Platine vinyl / Vinyl

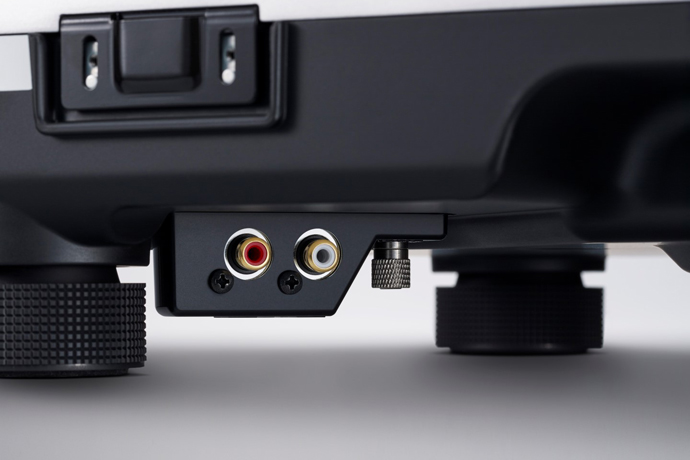

  • TECHNICS - SL1200GR - photo n 2 TECHNICS SL1200GR RCA
    Platine vinyl / Vinyl

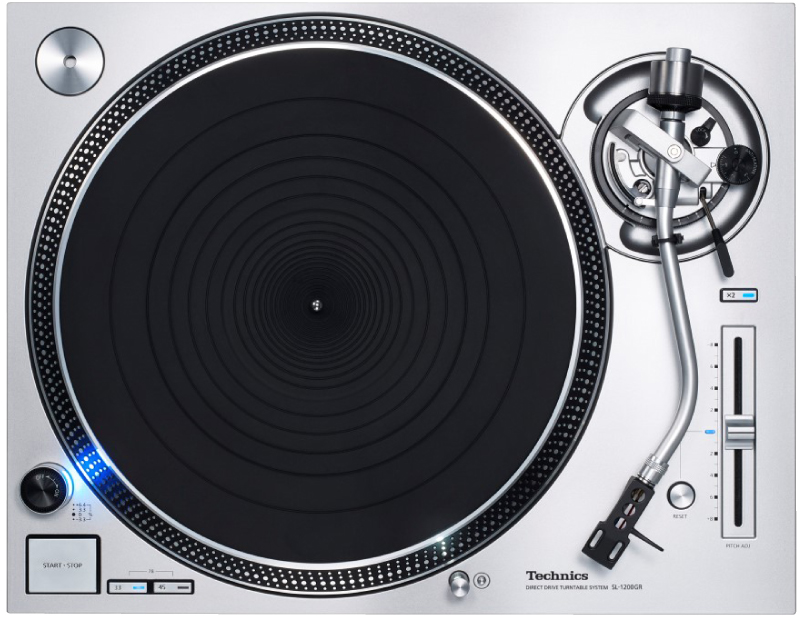

  • TECHNICS - SL1200GR - photo n 3 TECHNICS SL1200GR top
    Platine vinyl / Vinyl

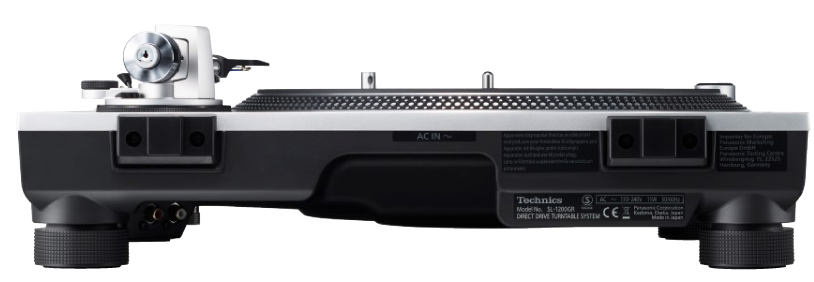

  • TECHNICS - SL1200GR - photo n 4 TECHNICS SL1200GR rear
    Platine vinyl / Vinyl
Image of


Sélectionner le produit

Description

TECHNICS SL1200GR

Turntable section

Type
Direct Drive Manual Turntable

Turntable Speeds
33-1/3, 45 and 78 r/min

Adjust Range
±8 %, ±16 %

Starting Torque
2.2 kg-cm

Build-up Characteristics
0.7 s. from Standstill to 33-1/3 r/min

Wow And Flutter
0.025 % W.R.M.S.

Rumble
78 dB (IEC 98A weighted)

Turntable Platter
Aluminium diecast
Diameter : 332 mm
Weight : Approx. 2.5 kg (5.51 lb) (Including rubber sheet)

Tonearm Section

Type
Universal Static Balance

Effective Length
230 mm (9-1/16")

Overhang
15 mm (19/32")

Tracking Error Angle
Within 2° 32' (at the outer groove of 30 cm record)
Within 0° 32' (at the inner groove of 30 cm record)

Offset Angle
22°

Arm-height Adjustment Range
0 - 6 mm

Stylus Pressure Adjustment Range
0 - 4 g (Direct Reading)

Head Shell Weight
Approx. 7.6 g

Applicable Cartridge Weight Range
(without auxiliary weight)
5.6 - 12.0 g
14.3 - 20.7 g (including head shell)
(with auxiliary weight)
10.0 - 16.4 g
18.7 - 25.1 g (including head shell)

Cartridge Mounting Dimension
JIS 12.7 mm (1/2") interval

Head Shell Terminal Lug
1.2 mmφ 4-pin terminal lug

Terminals

Audio Output
PHONO (Pin Jack) x 1
EARTH TERMINAL x 1

General

Power Supply
AC 120 V, 60 Hz

Power Consumption
11 W Approx.
0.2 W (Standby)

Dimensions (W x H x D)
453 x 173 x 372 mm
(17-27/32 × 6-13/16 × 14-21/32 inch)

Weight
Approx. 11.5 kg
(Approx. 25.35lbs)

Accessories
Turntable, Turntable sheet, Dust cover, EP record adaptor, Balance weight, Auxiliary weight, Head shell, Overhang gauge, Screw set for cartridge, PHONO cable, PHONO earth lead, AC power supply cord, Owner's Manual

Commentaire : La star des platines version 2017 !
