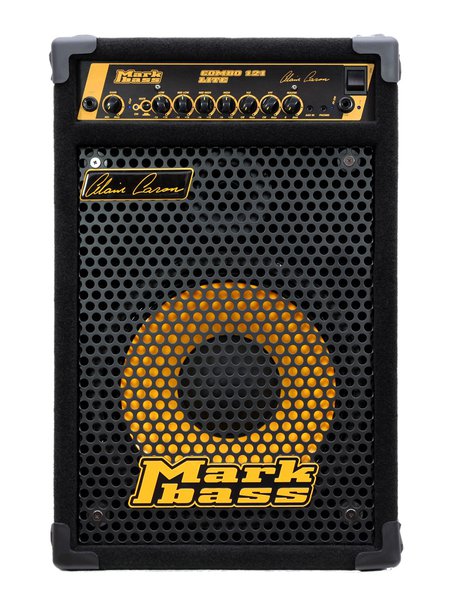

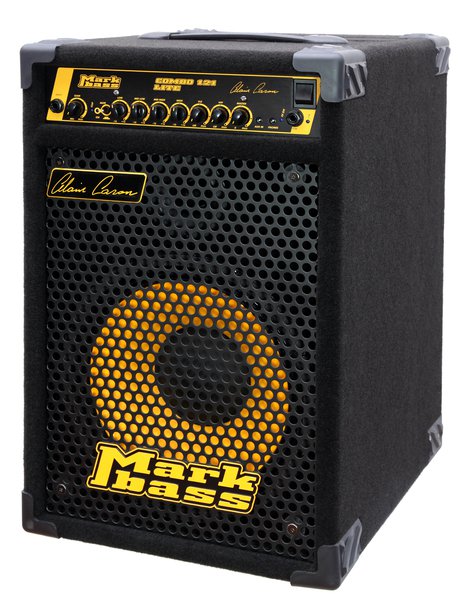

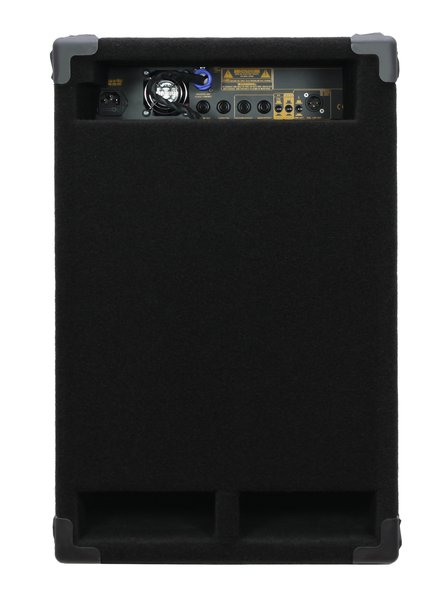

MARKBASS COMBO 121 LITE ALAIN CARON-Combo

Description

MARKBASS 121 LITE ALAIN CAJON

INPUTS
INPUT: impedance 1 Mohm, max. voltage 10 Vpp
AUX IN: impedance 10 Kohm, max. voltage 4 Vpp
EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp

CONTROLS
GAIN
MASTER VOLUME
LINE OUT: GND Lift – Pre/Post EQ /Post Master (Post EQ mode)
MUTE (footswitch*)
FX LOOP BYPASS (footswitch*)
* footswitch not included


EQUALIZATION
LOW
MID LOW
MID HIGH
HIGH
VPF (Variable Pre-shape Filter) center frequency 380 Hz
VLE (Vintage Loudspeaker Emulator) frequency range 250 Hz-20 kHz
OUTPUTS
LINE OUT: balanced XLR, max. voltage 20 Vpp
EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
TUNER OUT: unbalanced, max. voltage 2 Vpp
PREAMP OUT: unbalanced, max. level 20 Vpp
SPEAKER OUT: speakon/1/4" combo
PHONES OUT: 1/4" 600 ohms, max. level 10Vpp
SPEAKER
1X12"
TWEETER
1" compression driver
POWER AMPS
500W (woofer)
300W (tweeter)
REFLEX
rear
OTHER
WEIGHT: 35.94 lbs / 16.3 Kg
WIDTH: 15.16 in. / 38.5 cm
DEPTH: 18.11 in. / 46 cm
HEIGHT: 23.23 in. / 59 cm
POWER REQUIREMENT: 100/120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale)
